Drinker T-Line
Code | 0280102.50 T-Line rearing weaning cup |
---|---|
Capacity | Duck: Turkey: *DOC= day old chicks |
The Drinker T-Line is specifically designed for ducks and turkeys. It provides perfect functionality, optimum performances and is composed by few components. Permanent supply of fresh water permits the animals to live in a healthy environment and to decrease the mortality rate.
The pendulum, which is connected to the nipple and oscillates thanks to the pecking of ducks, minimizes water wasting and permits a correct calibration of water.
Image | Code | Description |
---|---|---|
0280102.50 | Rearing cup | |
0260104.54 | Round section pendulum for rearing cup | |
0280103.50 | Fattening big cup | |
0260104.55 | Flat section pendulum for fattening big cup | |
0260110.50 | Pendulum line valve | |

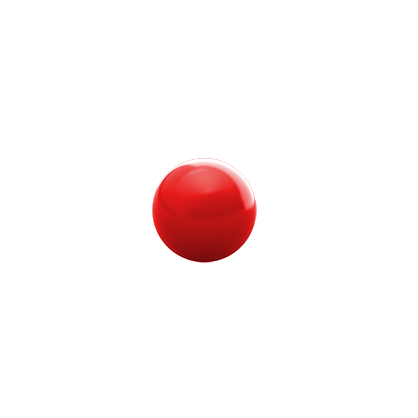

0260123.50 | Floating ball | |

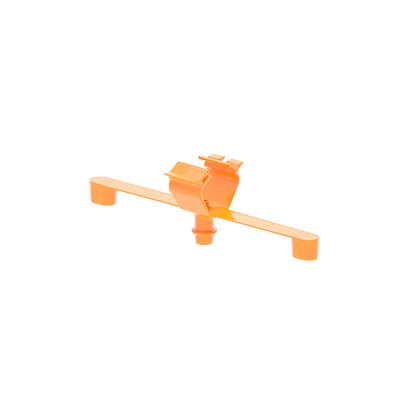

0280101.50 | Hanger bracket | |
0270128.50 | O-ring for hanger bracket | |
0270104.50 | Two pipes clamp | |
0270113.50 | Square PVC pipe 28x28 | |
0270121.50 | Plastic stiff joint for 28x28 pipe | |
0260109.50 | Square iron pipe 25x25 | |
0260121.50 | Plastic stiff joint for 25x25 pipe |
Image | Code | Description |
---|---|---|
0260114.50 | Collarette for rearing cup | |
0270116.50 | Rubber joint with clumps for 28x28 pipe | |
0260120.50 | Floating ball Ø30 | |
0260120.51 | Floating ball Ø33 |
