G89
| Code | 0210001.50 Ø9 |
|---|---|
| Bell diameter | 280 mm |
| Bell seat diameter | 345 mm |
| Gutter depth | 24 mm |
| Gutter width | 33 mm |
| Weight | 0.66 kg |
| Standard packing | 20 G89 Ø9 per carton 620x360x890 mm 20 G89 Ø14 (Cod. 0210002.50) per carton 262x360x890 mm |
| Shipping capacity | 2720 pcs = 20’ cnt |
G89 is a drinker usable for day-old chicks.
The extra surface area of the feeder guarantees a secure footing for the animals and avoids any kind of damage or loss, which is also the reason why it is guaranteed to be of the highest quality and durability.
OPERATING SPECIFICATIONS
Working pressure: min 0.2 bar – max 0.5 bar.
For higher pressures, either use a reducer or connect to a water tank that should be placed at least 4 m above ground level.
For optimum working conditions, it is suitable to keep the water level beetween 10 to 20 mm.
| Image | Code | Description |
|---|---|---|
| | 0480001.50 | Shut-off Saddle Ø9 |
| | 0604001.50 | Rubber hose 5x9 mm Ø9 |
| | 0501111.50 | Hose connector Ø9 |
| | 0210105.50 | Valve holder with guide sleeve fitted |

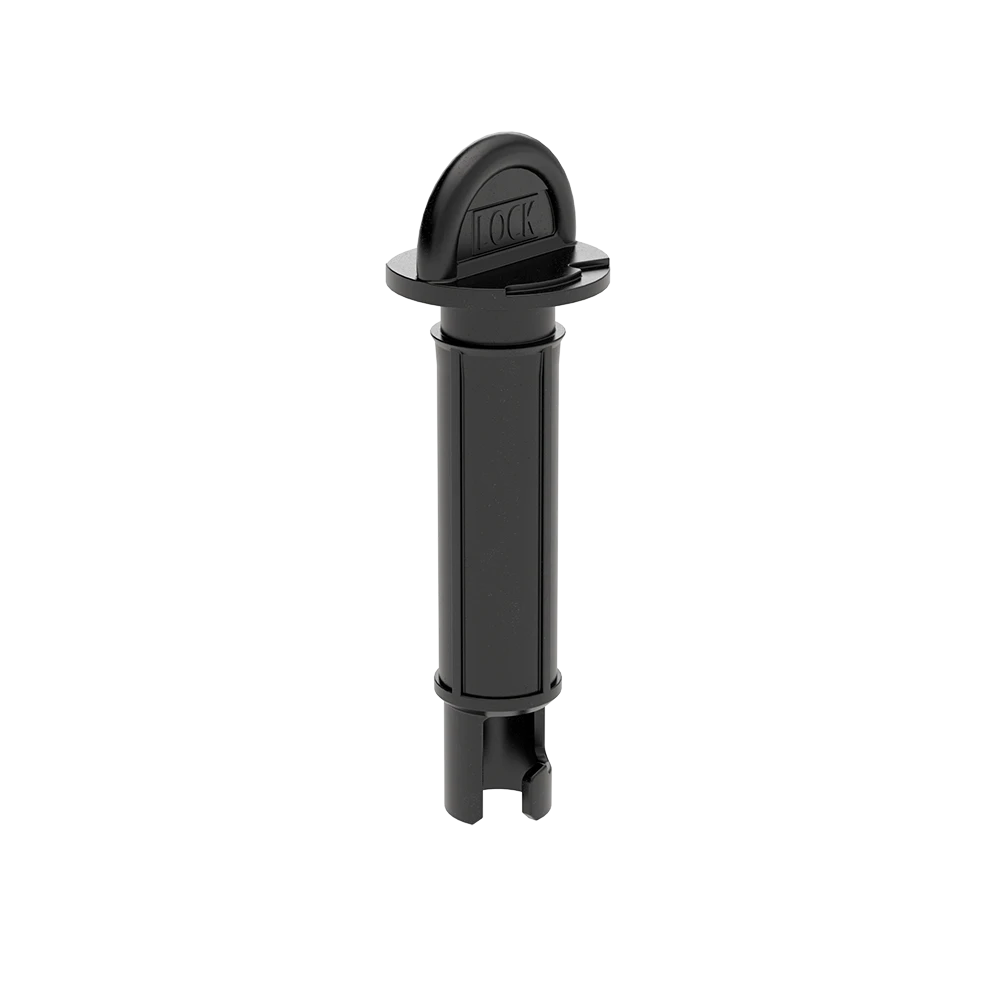

| | 0210103.50 | Black guide |
| | 0209111.50 | Water level control |
| | 0506002.50 | Valve without washer Ø9 |
| | 0210101.50 | Bell |
| | 0210104.50 | Spring |
| | 0210102.50 | Base |
| | 0505009.50 | Valve Ø9 |
| | 0604002.50 | Rubber hose Ø14 |
| | 0505010.50 | Valve Ø14 |
| Image | Code | Description |
|---|---|---|
| | 0210106.50 | Grid |
| | 0503002.50 | Threaded T Ø9 |
| | 0503003.50 | Threaded T Ø14 |
