Jumbo T
| Code | 0201009.50 Ø9 |
|---|---|
| Diameter | 480 mm |
| Height | 570 mm |
| Gutter depth | 69 mm |
| Gutter width | 68 mm |
| Weight | 2.1 kg |
| Capacity | 50/60 adult fatteners/breeders |
| Standard packing | 20 Jumbo T Ø9 per carton 700x470x730 mm |
| Shipping capacity | 1920 pcs = 20' cnt |
Jumbo T is a semi-automatic drinker for ducks and turkeys breeder, suitable for the animal’s entire life.
Can be used lying on the floor or hanging.
Equipped with a weighted bell that is placed under the red bell and filled with water or sand to prevent the trough from becoming agitated and water leaking.
Jumbo-T drinker is supplied with 3 m hose and shut-off saddle.
OPERATING SPECIFICATIONS
Working pressure: min 0.2 bar – max 0.5 bar.
For higher pressures, either use a reducer or connect to a water tank that should be placed at least 4 m above ground level.
For optimum working conditions, it is suitable to keep the water level beetween 10 to 20 mm.
| Image | Code | Description |
|---|---|---|

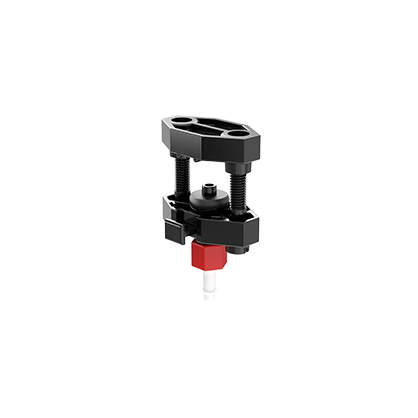

| | 0480001.50 | Shut-off saddle Ø9 |
| | 0505107.50 | Hose hook Ø9 |
| | 0505106.50 | Cord Adjuster |
| | 0604001.50 | Rubber hose 5x9 |
| | 0505111.50 | Suspension Cord |
| | 0505119.50 | Suspension hook |

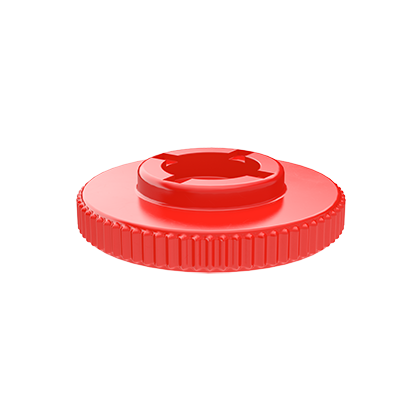

| | 0201111.50 | Locknut |

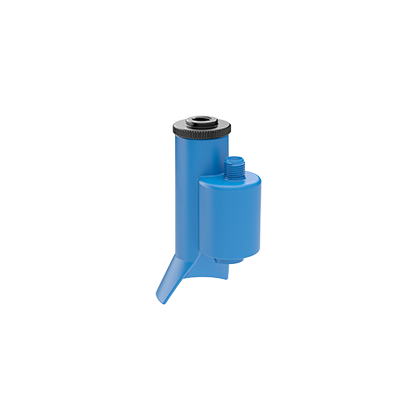

| | 0201107.50 | Water level control |
| | 0501111.50 | Hose connector Ø9 |
| | 0506002.50 | Valve Ø9 |
| | 0201108.50 | Collar |

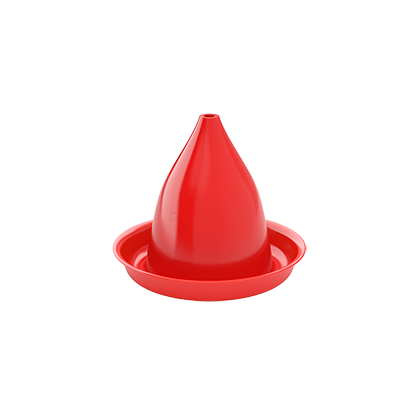

| | 0201101.50 | Bell |
| | 0505115.50 | Spring |

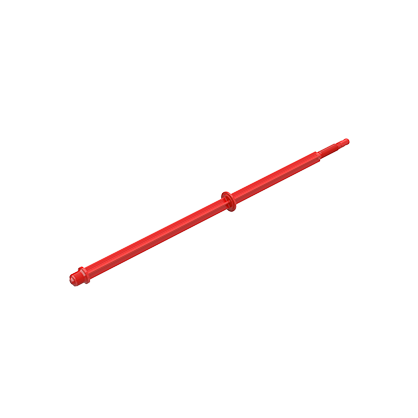

| | 0201106.50 | Stem |
| | 0201112.50 | Plug |

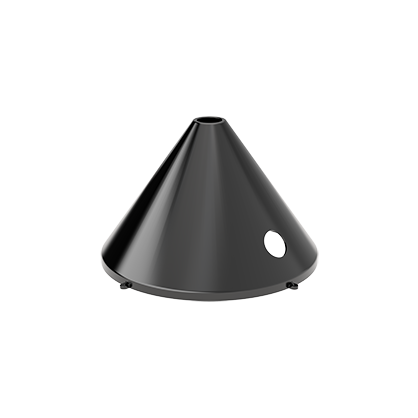

| | 0201104.50 | Cover |
| | 0201105.50 | Base |

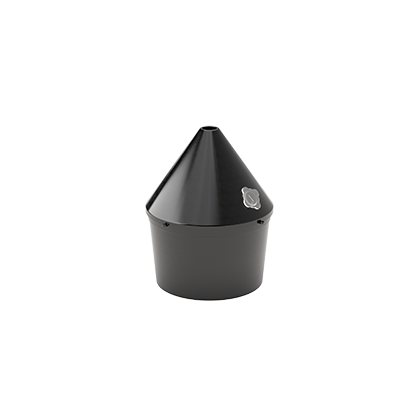

| | 0201103.50 | Ballast complete |

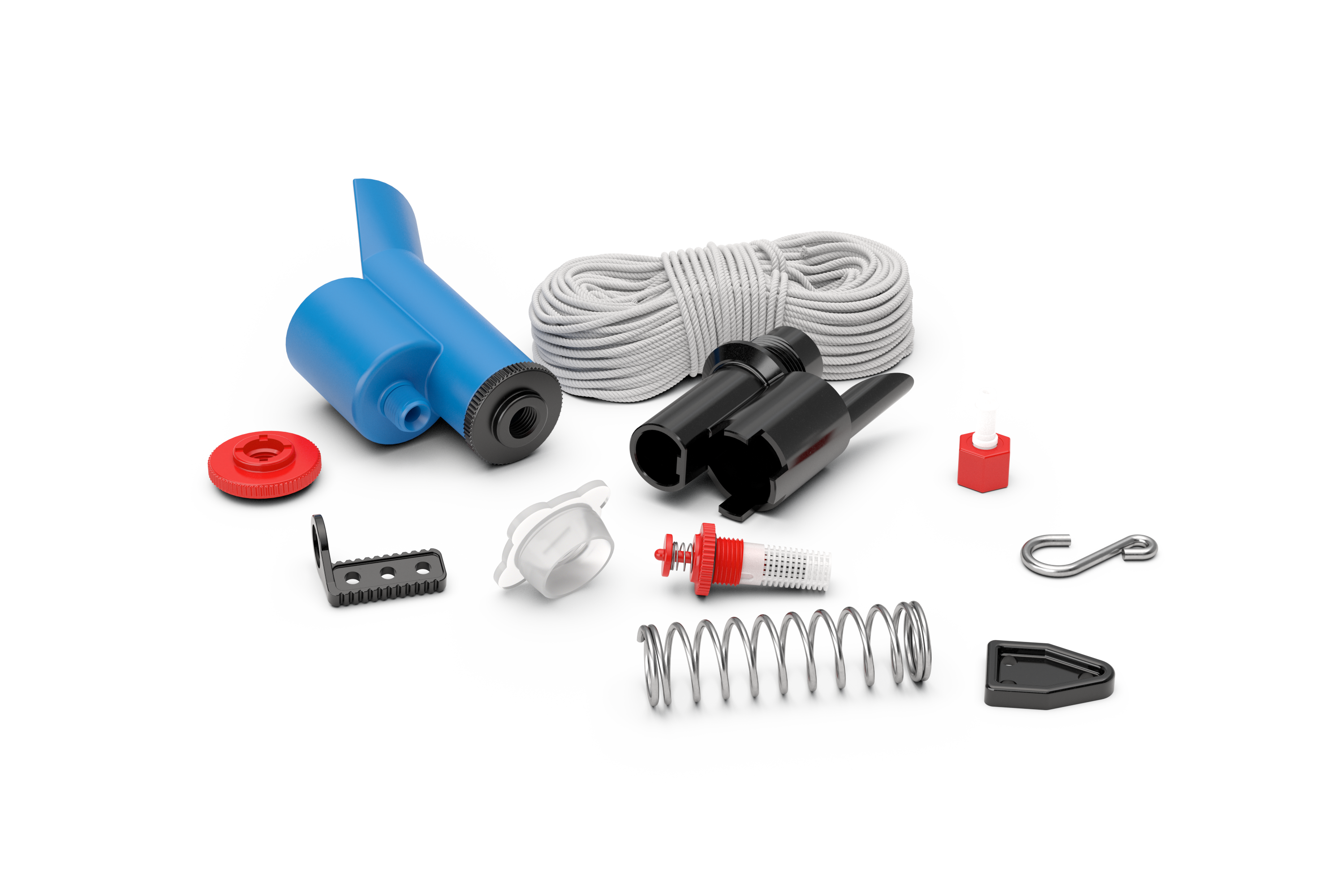

| | 0504003.50 | Valve complete Ø9 |
| | 04800002.50 | Shut-off saddle Ø14 |
| | 0604002.50 | Rubber hose 10x14 |
| | 0504004.50 | Valve complete Ø14 |
| Image | Code | Description |
|---|---|---|
| | 0503002.50 | Threaded T Ø9 |
| | 0503003.50 | Threaded T Ø14 |
