Manola B
Code | 0301002.50 |
---|---|
Diameter | 443 mm |
Circumference | 1391 mm |
Gutter depth | 68 mm |
Gutter width | 53 mm |
Weight | 1.64 kg |
Capacity | 20 kg |
Standard packing | 20 cones per carton 350x680x700 mm |
Shipping capacity | 2060 pcs = 20' cnt |
The Manola B is a plastic feeder for manual or semi-automatic use.
In its standard version, without cover, it is mainly used for breeding chickens, while for broiler housing the version with cover is preferred.
In some countries, such as the UK, it is equipped with the Garden Rain cover, a lid designed to cover the feed from rain and humidity
Image | Code | Description |
---|---|---|
| 0505111.50 | Suspension cord 3mt |
| 0505106.50 | Cord adjuster |
| 0301102.50 | Cone |

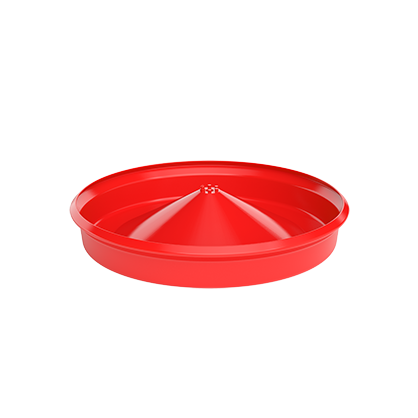

| 0301101.50 | Pan |

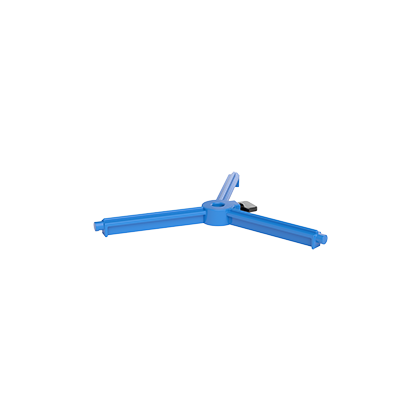

| 0301105.50 | Top stabilizing bar |
| 0301106.50 | Bottom stabilizing bar |
| 0301104.50 | Aluminium stem |
| 0505119.50 | Suspension hook |

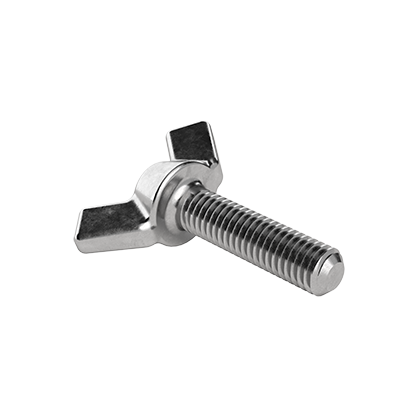

| 0301120.50 | Screw 30 mm |
| 0301110.50 | Screw 20 mm |
| 0301116.50 | Metal washer |
Image | Code | Description |
---|---|---|
| 0301103.50 | Lid |

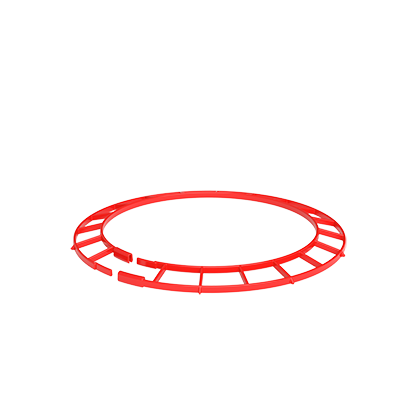

| 0301118.50 | Anti-waste grid |
| 0301117.50 | Garden rain cover |
