Broiler

G86

Code

0208006.50 Ø9

Diameter

380 mm

Height

625 mm

Gutter depth

45 mm

Gutter width

45 mm

Weight

1.87 kg

Capacity

60/80 adult broilers

Standard Packing

20 G86 Ø9 per carton 410x410x710 mm
500 collars per carton 410x410x710 mm
10 complete valves Ø9 per carton 220x200x110 mm
500 shut-off sadle Ø9 per carton 410x410x710 mm

Shipping Capacity

4200 pcs = 20’ cnt​
8640 pcs= 40’ cnt
8640 pcs= 40’ HC

G 86 bell drinker is a drinker for broilers that working only suspended.
It has an excellent stability thanks to the lead ring inside the plate (the ring prevents the trough from oscillating continuously while the animals drink).
G 86 drinker is supplied with 3 m hose and shut-off saddle.

OPERATING SPECIFICATIONS
Working pressure: min 0.2 bar – max 0.5 bar.
For higher pressures, either use a reducer or connect to a water tank that should be placed at least 4 m above ground level.
For optimum working conditions, it is suitable to keep the water level beetween 10 to 20 mm.

ImageCodeDescription
0480001.50 Shut-off saddle Ø9

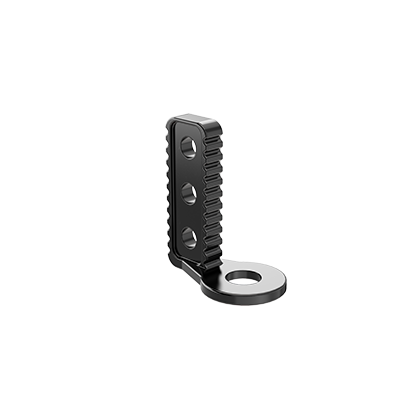

0505107.50 Hose hook Ø9

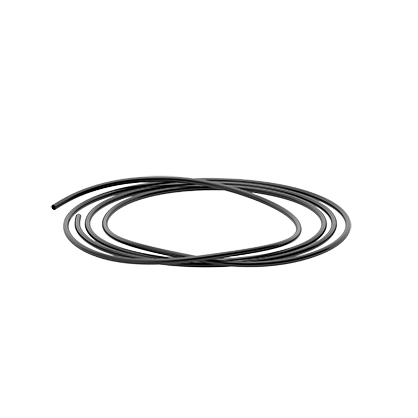

0604001.50 Rubber hose 5x9
0505106.50 Cord Adjuster
0505111.50 Suspension cord

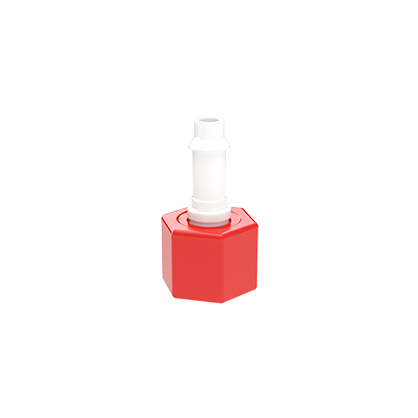

0501111.50 Hose connector Ø9

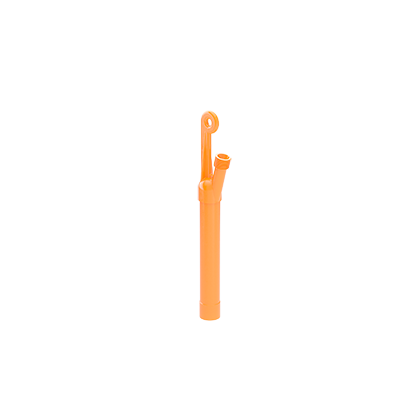

0505101.50 Valve flow tube
0505103.50 Valve adjusting screw

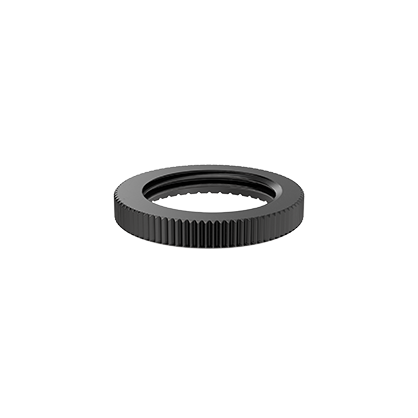

0505104.50 Locknut
0505113.50 Spring

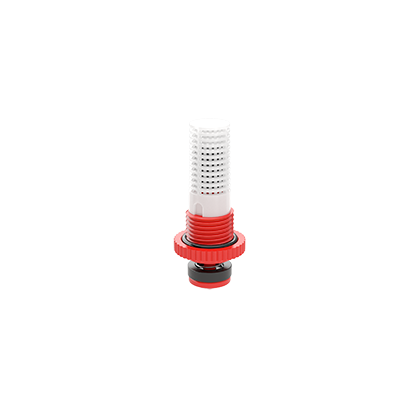

0506001.50 Valve with washer
0208102.50 Collar

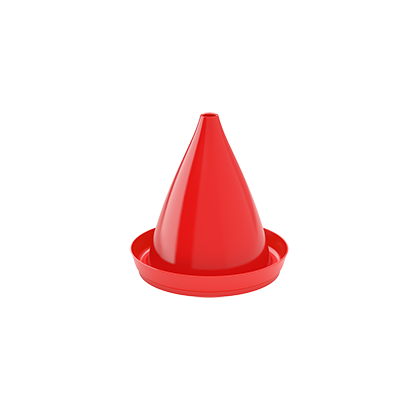

0208101.50 Bell
0505003.50 Complete valve Ø9
0480002.50 Shut-off saddle Ø14

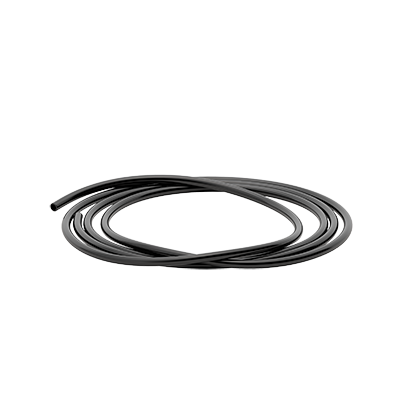

0604002.50 Rubber hose 10x14
0505004.50 Complete valve Ø14

ImageCodeDescription
0503002.50 Threaded T Ø9
0503003.50 Threaded T Ø14
